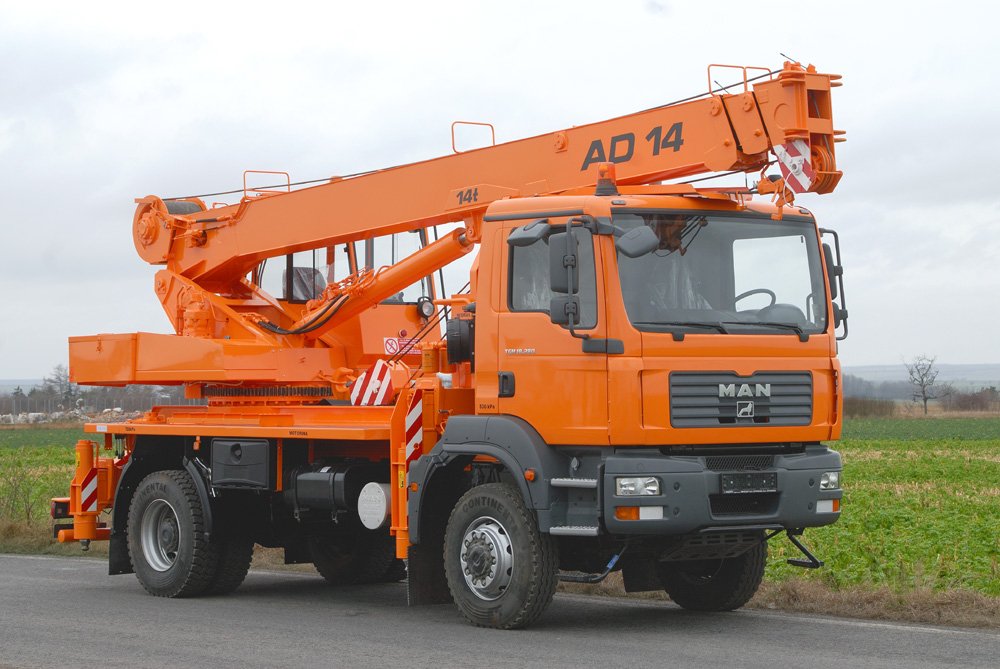

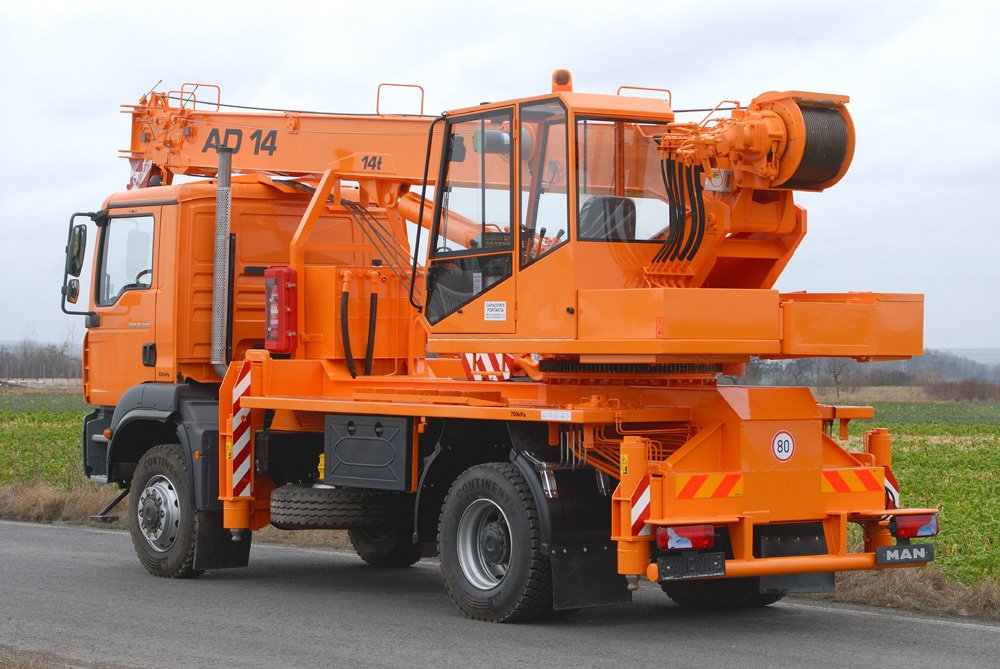

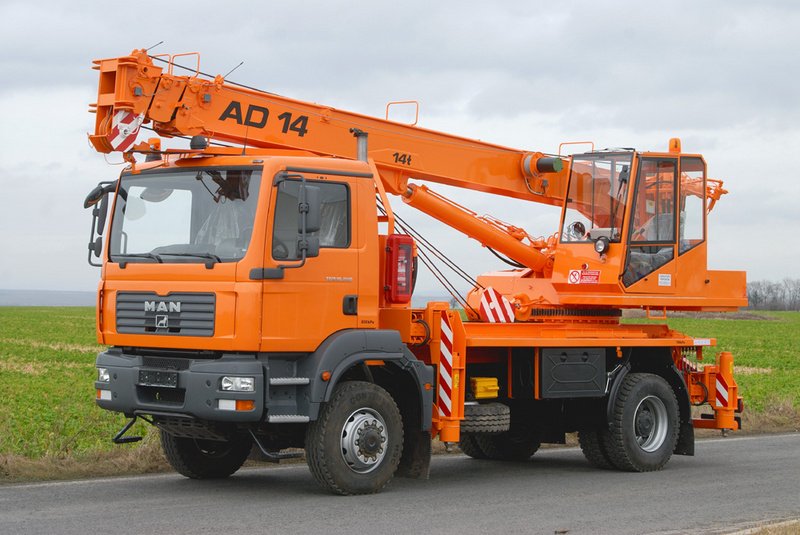

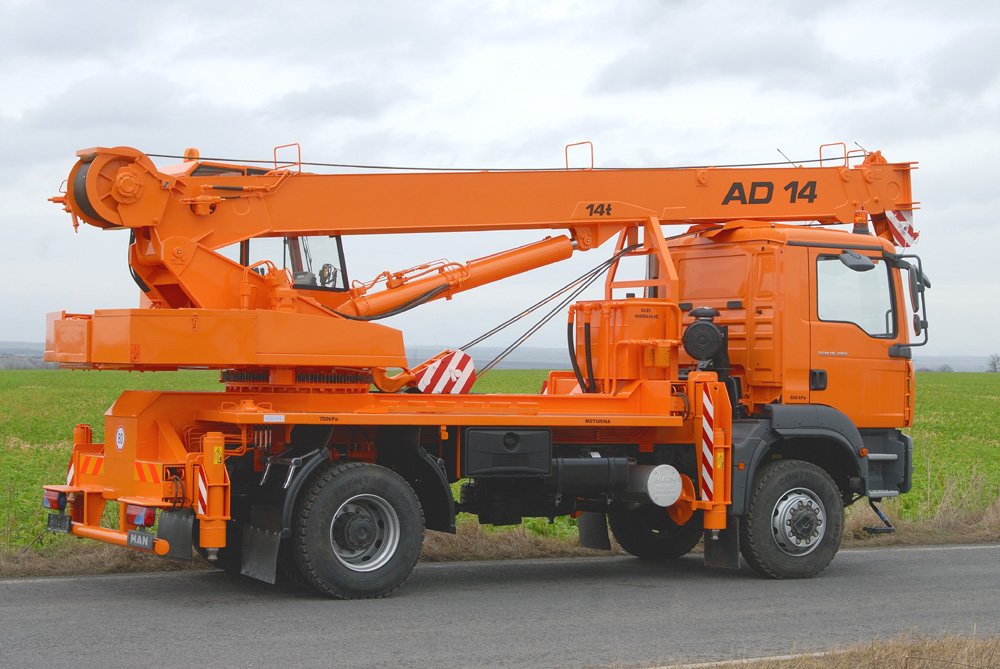

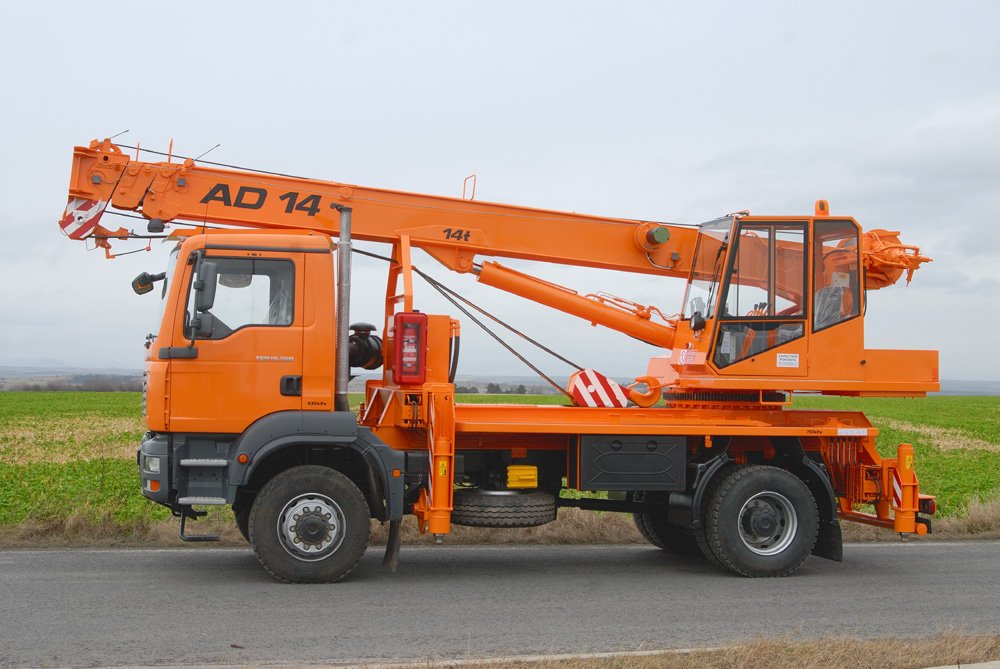

Truck-mounted Crane MAN AD 14

The truck-mounted crane AD 14 is mobile crane with the three section telescopic boom, located on the undercarriage MAN (Mobile crane Man) or on other acceptable undercarriages according to the customer’s requirement. It belongs to the category of the road boom provided cranes with the fully rotating superstructure and the tilting boom. The maximal lifting capacity is 14 000 kg. Technical data alterations are reserved.

AD - 14lengthwidthheightwidth with extended outriggers
Dimensions mm8 4002 5003 9304 490
Total / permissible
mass kg
16 200 / 18 000
Axle loading kgfront: 7 100rear: 11 500
Lifting capacity kg14 000
Length of basic boomretracted: 7 500 mmextended: 16 900 mm
Length of boom with fly jib23 400 mm
Hydraulic system4 circuits
Safety deviceSLI 05 D
Controllever control of distributors
Type of undercarriageMAN TGM 18.280 4x4 / wheelbase 4 200 mm
Engine power206 kW
Max. travelling speed80 km/hr
