Production program

  6 litres hand powder fire extinguisher

  Location of a 10 tons single-pulley hoisting block - it serves for quicker motion of the hook at limitation of the lifting capacity (above- standard equipment)

  Plastic toolbox 800x400x460 mm

  Heated operator’s cab with a safety screen above head, front and ceiling window wipers, front window washer, sunlight shield and fan. (Air conditioning – above- standard equipment)

  Left-side outriggers control + level for adjustment of superstructure to horizontal working position

  Rear telescopic outrigger

  Basic box for tools and bindings means 1370x800x590 mm

  High voltage indicators IVTS

  High voltage indicators IVN

  Three-part fully telescopic boom

  Basic three-flap hoisting block with a hook - lifting capacity 20 tons

  Front telescopic outrigger with carried supporting pad

  Electronic sensor of extension and tilt of boom with a cable winding drum

  Operating panel + overload control safety device SLI05 (crane stability control)

  Crane control: basic with levers, in above-standard equipment - proportional with joysticks (DANFOSS hydraulics); with option of including a remote wireless control device

  Crane operator’s cab air conditioning (above-standard equipment)

  Lattice boom extension (above-standard equipment) – use with 3,2 tons hoisting block

  Location of 5 tons front auxiliary winch (above-standard equipment)

  Fool tank for crane operator’s cab heating system

  Superstructure platforms in above- standard equipment can be aluminous

  Front outrigger with carried supporting pad

  3,2 tons hoisting block for use with jib extension (above- standard equipment)

  Orange beacon flashlight – electronic flashlight upon request. The second beacon flashlight is located on the crane operator's cab

  Rear telescopic outrigger

  Left-side outriggers control + level for adjustment of superstructure to horizontal working position

  Option of placing of 10 tons auxiliary winch (above-standard equipment) + Crosby converting hoisting block (to double the tension in the cable)

  Hydraulic oil tank with filters - in above-standard equipment with air oil cooler

  Hydraulic spare wheel hoist

  Cable drum

  Location of hinge for trailer (above-standard equipment)

  Supporting pads for rear outriggers

Autojeřáb AD 14 MAN

AD 14 MAN

The truck-mounted crane AD 14 is mobile crane with the three section telescopic boom, located on the undercarriage MAN or on other acceptable undercarriages according to the customer’s requirement.

Autojeřáb AD 14 MB

AD 14 MB

The truck-mounted crane AD 14 is mobile crane with the three section telescopic boom, located on the undercarriage Mercedes-Benz or on other acceptable undercarriages according to the customer’s requirement.

Autojeřáb AD 10 IVECO

AD 10 IVECO

The truck-mounted crane AD 10 is determined for building and assembly works as well as for the works in heavy terrain. The crane superstructure is provided with two-section telescopic boom and hydraulic Danfoss with joysticks, on undercarriage IVECO.

AD 20 MB

AD 20 MB

The truck-mounted crane AD 20 is determined for building and assembly works also in heavy terrain. In the basic execution is delivered under the designation AD 20.2 on the undercarriage Mercedes-Benz or on undercarriages according to the customer´s requirement with a three section boom.

AD 30 MAN

AD 30 MAN

The truck-mounted crane AD 30 is determined for building and assembly works also in heavy terrain. The crane has a four section boom. The truck-mounted crane is possible to be equipped with the hydraulics DANFOSS with joysticks, two fly jibs, tube and lattice fly jib etc..

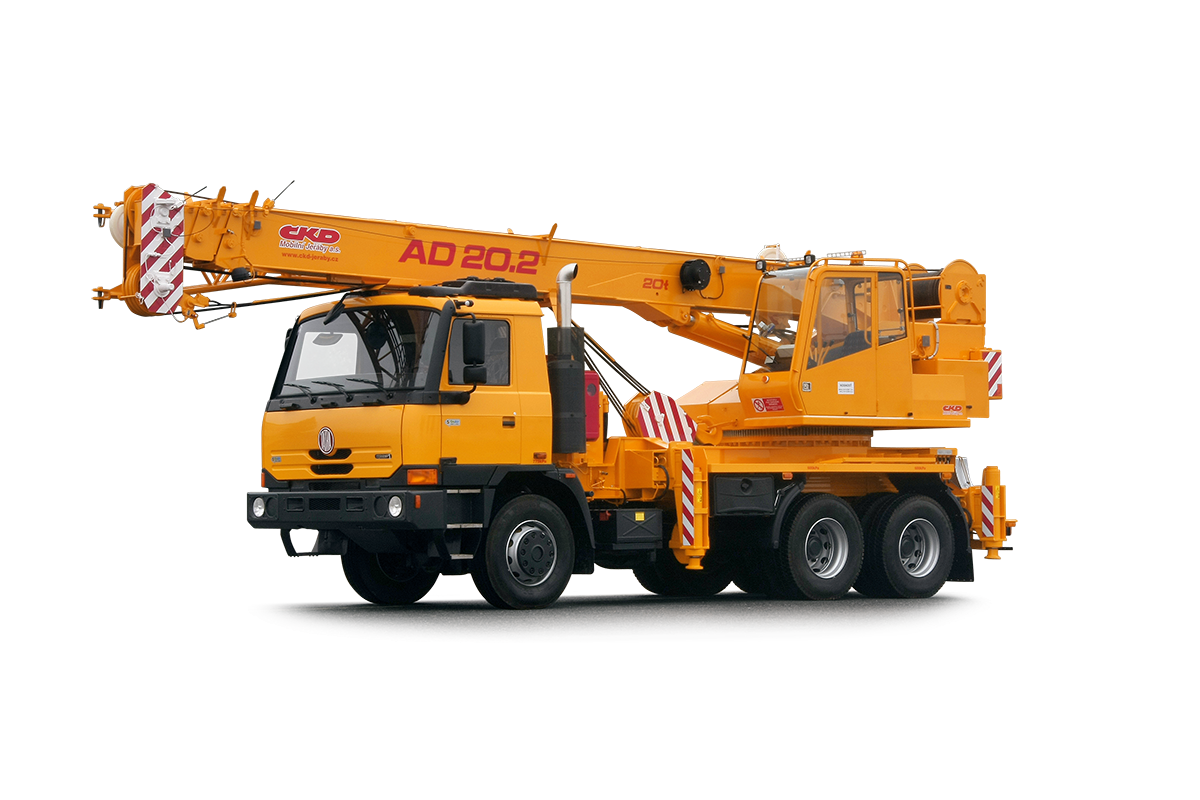

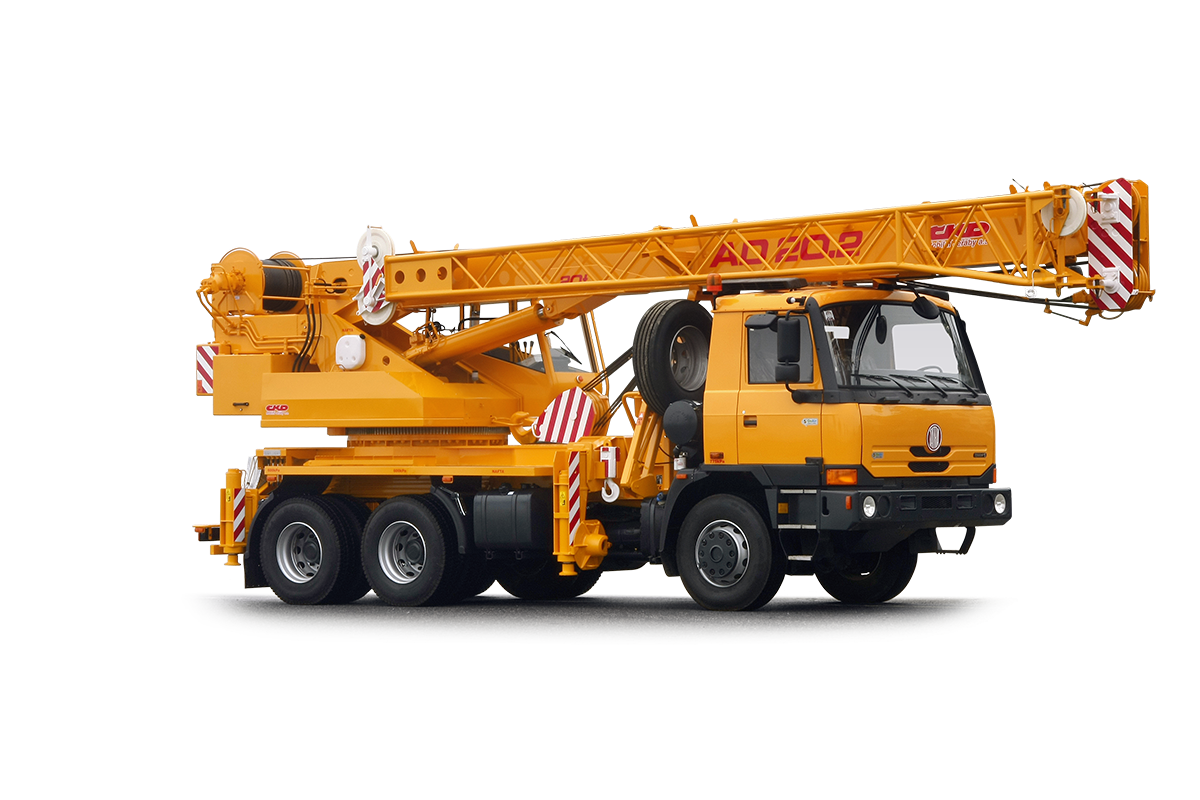

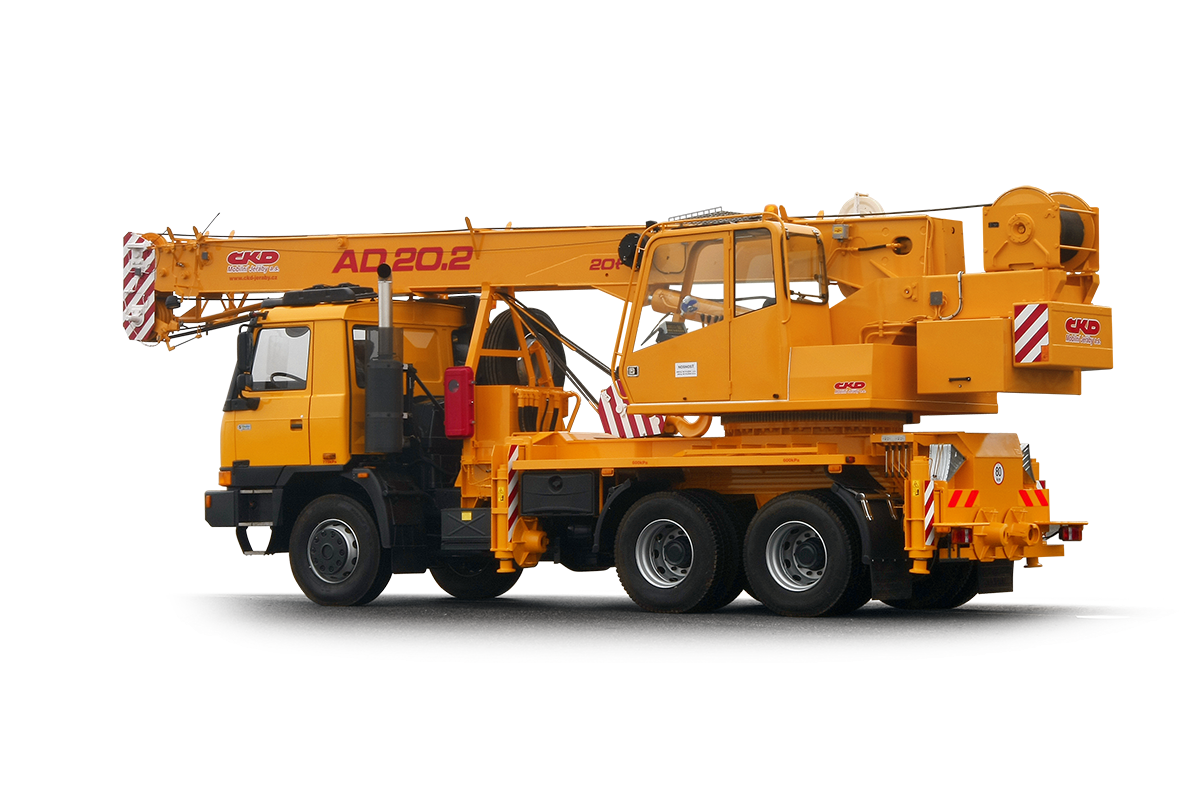

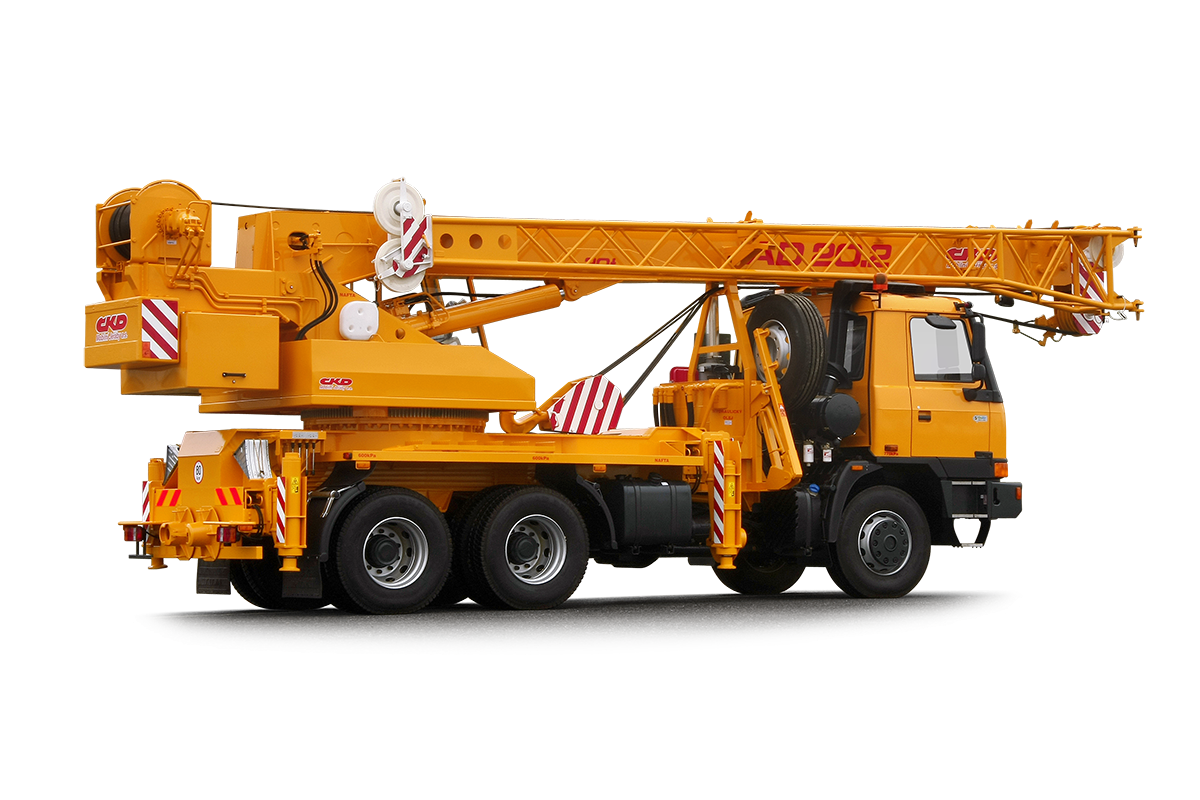

AD 20 TATRA

AD 20 TATRA

The truck-mounted crane AD 20 is determined for building and assembly works also in heavy terrain. In the basic execution is delivered under the designation AD 20.2 on the undercarriage TATRA 815-2 or on undercarriages according to the customer´s requirement, with a three section boom.
